THE KITCHEN APPLIANCE AMONGST MONITORS

CUISINNO - Küchenmonitoring
CONTACT

PROFESSIONALS USE KITCHEN MONITORS

It is no surprise that the use of dedicated kitchen-display systems in high-end gastro­nomy is on the rise – the benefits are evident:

Increased efficiency due to smoothened workflows

No lost receipts, a reduction in ‘idling’ – Cuisinno greatly increases the efficiency of the whole team.

Thanks to the visual depiction of an order, the entire team is immediately able to understand their respective tasks and can begin with the preparation before the waiter has even returned to the kitchen.

More important than ever:
impeccable hygiene

Cuisinno reduces physical contact among kitchen and service staff thanks to the nonnecessity of paper receipts.

Furthermore, Cuisinno can be cleaned or disinfected at any time – even while it is in use!

A professional appliance for professional kitchens

A professional kitchen in full operation is very different to a private living room. A dedicated kitchen monitor therefore must meet very specific requirements that conventional (home-) devices do not provide.
A kitchen-display:

  • has to work reliably, WITHOUT ANY DOWNTIME.

  • must add value immediately and intuitively.

  • has to be super easy to clean.

CUISINNO IN PRACTICAL WORK

Device cleaning

Robustness

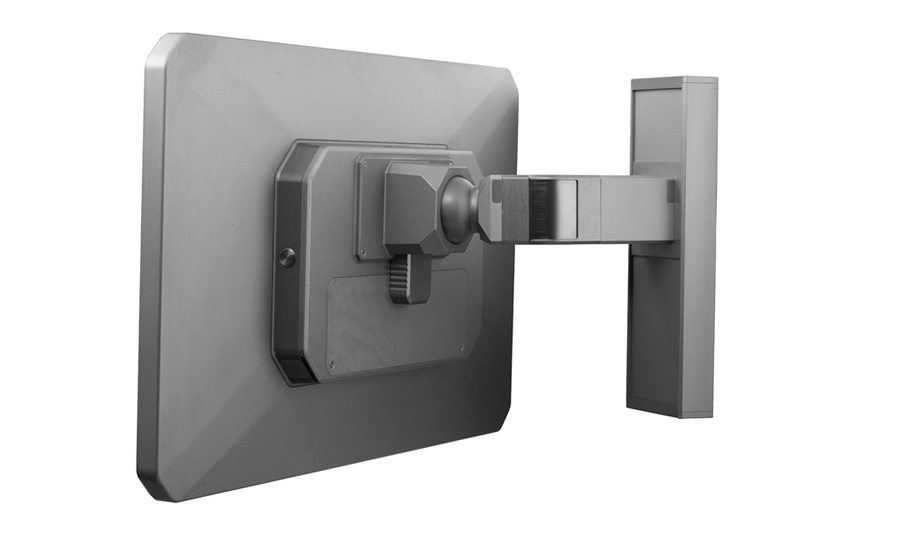

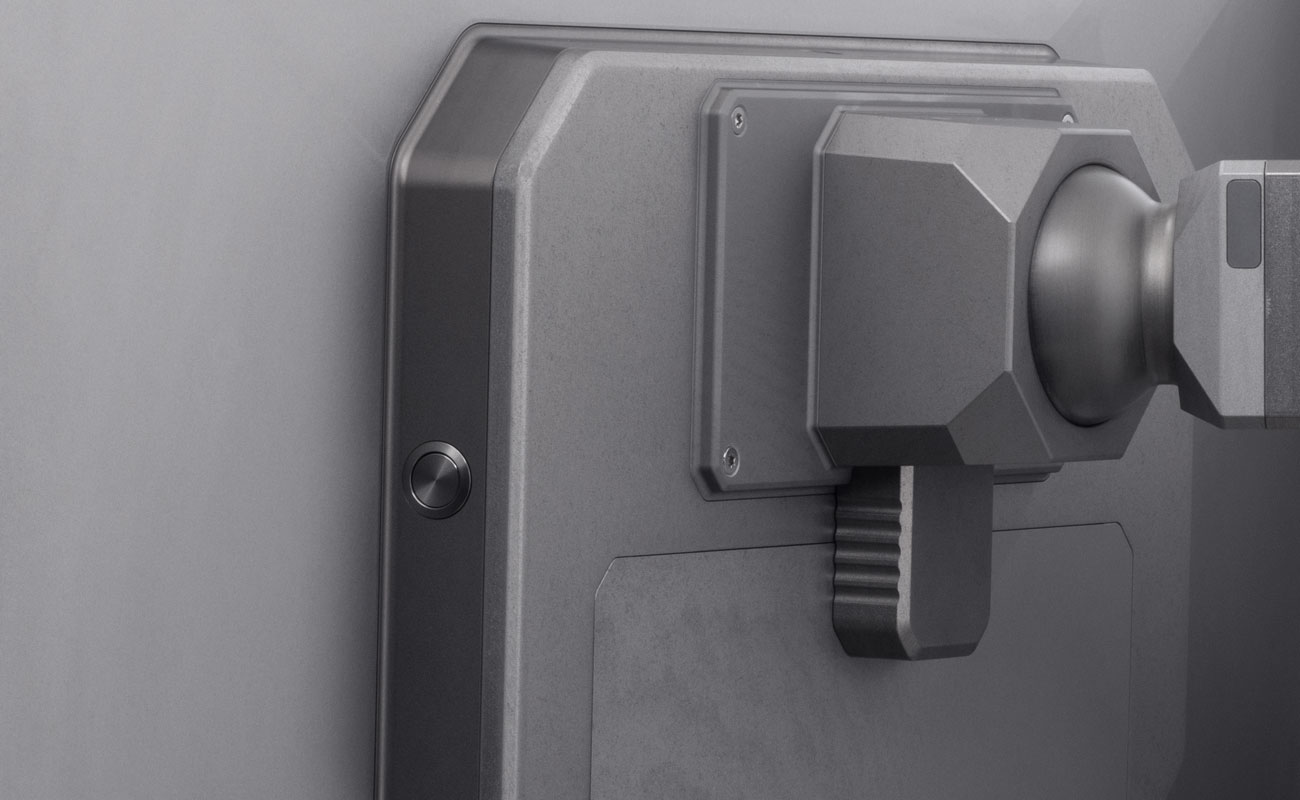

Ball joint

CUISINNO IN COMPARISON

CONVENTIONAL SYSTEMS

Conventional kitchen-display systems are generally just converted consumer products, the wiring is complex, compli­cated and prone to errors.

THE CUISINNO SOLUTION

CUISINNO shelters all necessary system components in a closed, hard anodized aluminum housing. Robust, compact and virtually impervious.

CUSTOMER REFERENCES

THE BENEFITS OF CUISINNO

Cuisinno has been designed speci­fi­cally to facili­tate and smoothen the deman­ding work­flows of the entire team in a pro­fessional kitchen. That is why Cuisinno is cherished by chefs and staff alike:

  • Fail-safe & robust

The Cuisinno monitor is designed for 24/7 continuous operation. All parts in the robust, hard-anodized aluminum housing are industrial components, with unmatched quality and reliability compared to consumer products. All Cuisinno monitors therefore come with a 2 year warranty.

  • Improved communication flow

Kitchens are busy places – and it can get loud from time to time. Hence it is not always easy to keep a clear head in every situation.

A kitchen display greatly facilitates the communication between guest, waiter and the kitchen team. Data is exchanged with the POS system in real time, without delays or misunder­standings due to noise. Consequently, workflows become much more efficient.

  • Cleaning is fast and easy

Smooth surfaces, no joints, no seams and no sharp edges or corners: Cuisinno is really easy to clean.

Cuisinno has no air vents through which water, filth or grease could enter, resulting in superior hygiene and relieability.

  • Temperature resistant

Designed for an application range from 0 to +50 °C

SOPHISTICATED DETAILS

Smart notification function

A flashing LED indicates an incoming new order. No more overlooked tickets!

Smart INTERNAL cable routing

Neatly stowed cables allow effortless cleaning of the device – and eliminate the risk of tripping!

MOUNTING & ACCESSORIES

Crafty and secure cable routing is essential in a professional kitchen monitor.
All Cuisinno accessories allow for cleaning the appliance effortless – without creating a tripping hazard.

Table Stand

SF 215 | SF 320

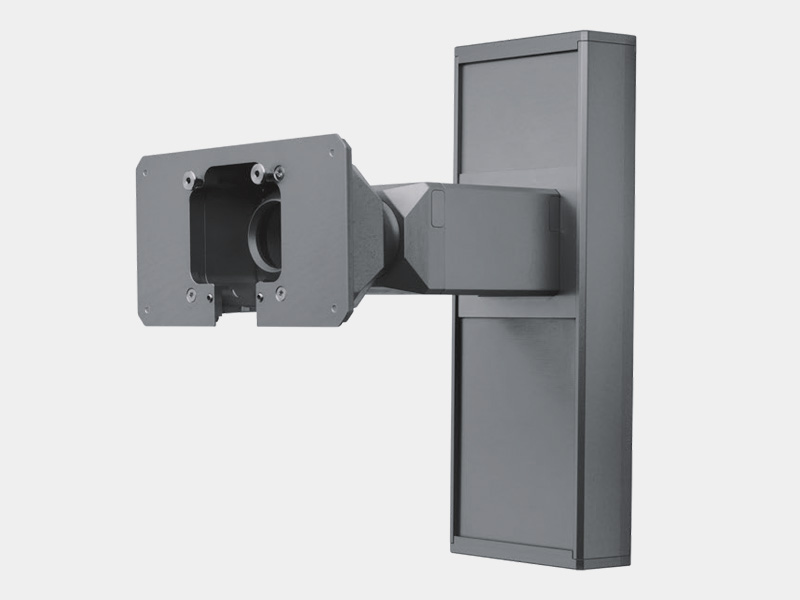

Wall Mount

TAWH 400 215 | TAWH 400 320

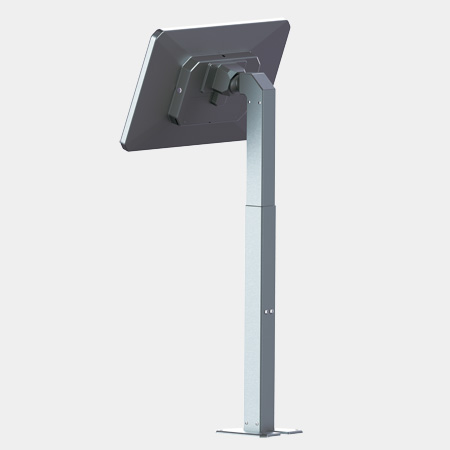

Floor- & Ceiling-Mount

DBH 1200 215 | DBH 1200 320
height adjustable 120 cm – 150 cm

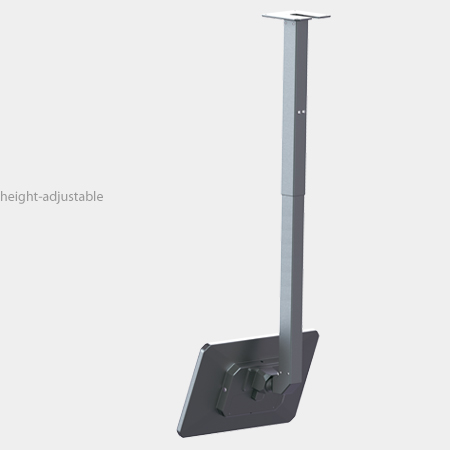

Floor- & Ceiling-Mount

DBH 1600 215 | DBH 1600 320
height adjustable 140 cm – 190 cm

VESA adapter plate
100 x 100 mm

MODELS & TECHNICAL SPECIFICATIONS

CUISINNO 215 – the compact one

CUISINNO 320 – the grown up one

CASING

Robust, hard anodized aluminum housing
Measurements:
21,5“ = 568 x 360 x 70 mm
32,0“ = 796 x 490 x 83 mm

Weight:
21,5“ = 11,65 kg
32,0“ = 19,75 kg

No openings for ventilation

Service-friendly access to all interfaces

DISPLAY

TFT Full HD active matrix (1920 x 1080 pixels)
Brightness:
21,5“ = 250 cd/m²
32,0“ = 400 cd/m²

CONTROLS

Capacitive multi-touch technology
The screen can even be operated with wet hands as well as (up to medium thick) gloves

Capacitive function buttons

Power switch

CPU

Intel® Atom E3845 quad core 1,91 GHz

GRAPHIC CONTROLLER

Intel® HD Graphics

MEMORY

2 x 4 GB DDR3L-SODIMM-1600

HARD DRIVE

32 GB mSATA

INTERFACES

2 x USB 2.0
2 x USB 2.0 below the casing (easily accessible for servicing)
DP (DisplayPort)
Integrated switch: 4 Port Gbit

OPERATING SYSTEM

Windows (Embedded POSReady 7; Windows 10 IoT)

SPECIAL FEATURES

Automatic temperature monitoring
Flashing LED
signalling receipt of new ticket
“Screen Off” when the lights are out in the kitchen
“Touch lock” when cleaning the device
2 stereo speakers with 3-Watt output each

POWER SUPPLY

Power supply: 110 – 230 VAC
Cold appliance socket: 110 – 230 VAC

CERTIFICATIONS

Safety requirement IEC 62368-1: 2014
Protection class IP55 according to IEC 60529
Interference emission according to EN61000-6-3:2007
Interference stability according to EN61000-6-1:2007

Tested by external laboratories.
